February 2014

SANYO DENKI Introduces Industry's Highest Air Flow and Longest-Lasting 92 x 92 x 38 mm High Air Flow Long Life Fan


sanyo denki co., ltd. has developed and introduced the 92 x 92 x 38 mm high air flow long life fan “san ace 92l” 9lg type. this cooling fan delivers the highest air flow and longest lifespan in the industry.*1  the san ace 92l 9lg type is a perfect cooling solution for inverters, servers, data storage systems, communications equipment, power supplies and pv inverters.  this product has the pwm control feature, designed for controlling the rotational speed of the fan from the device side.

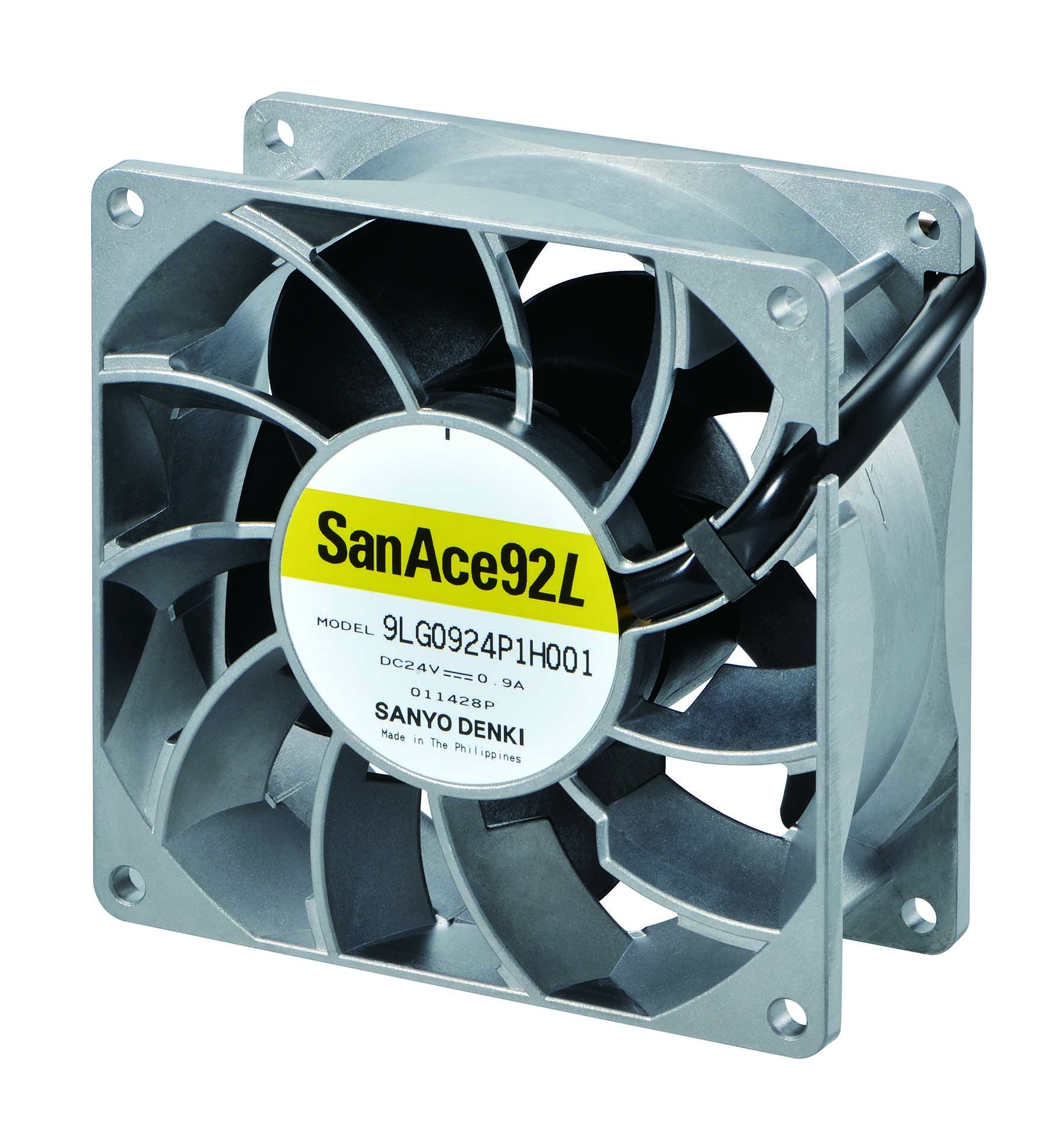

sanyo-denki-9lg0924p1h001_1934



features



1. high air flow and high static pressure

the maximum air flow of the san ace 92l 9lg type is approximately 1.6 times and the maximum static pressure is approximately 4 times higher than that of our conventional long life fan.*2



2. long life

the san ace 92l 9lg type has an expected life of 180,000 hours (approximately 20 years), making this fan ideal for equipment that must operate without maintenance for extended periods.



specifications



model no.

9lg0912p1h001

9lg0912p1f001

9lg0924p1h001

9lg0924p1f001

rated voltage

dc 12 v

dc 12 v

dc 24 v

dc 24 v

operating voltage range

dc 10.2 to 13.8 v

dc 10.2 to 13.8 v

dc 20.4 to 27.6 v

dc 20.4 to 27.6 v

power consumption

24.0 w

12.0 w

21.6 w

12.0 w

rated rotating speed

9,000 min-1

7,000 min-1

9,000 min-1

7,000 min-1

max. air flow

3.70 m3/min

(130.6 cfm)

2.90 m3/min

(102.4 cfm)

3.70 m3/min

(130.6 cfm)

2.90 m3/min

(102.4 cfm)

max. static pressure

430 pa

(1.72 inch h2o)

263 pa

(1.05 inch h2o)

430 pa

(1.72 inch h2o)

263 pa

(1.05 inch h2o)

sound pressure level

61 db(a)

55 db(a)

61 db(a)

55 db(a)

expected life

180,000 hours (l10: survival rate: 90% at 60ºc, rated voltage, and continuously run in a free air state)

size

92 x 92 x 38 mm

mass

approx. 270 g



applications inverters, servers, data storage systems, communications equipment, power supplies and pv inverters



for more information, please visit the sanyo denki web site.



*the information stated in this release is current as of february 20, 2014.

*1: the information is based on our own research as of february 20, 2014, collected among 92 x 92 x 38 mm axial dc cooling fans for industrial use.

*2: specification of model no. 9lg0912p1h001. our conventional long life fan is 92 x 92 x 25 mm “san ace 92l”, model no. 9lg0912p4j001.




marla downs

sanyo denki america, inc

tel: (310) 783-5400

e-mail: marketing@sanyo-denki.com
